MacBook Pro (13-inch, Early 2011) - Technical Specifications

Size and weight

• Height: 0.95 inch (2.41 cm)
• Width: 12.78 inches (32.5 cm)
• Depth: 8.94 inches (22.7 cm)
• Weight: 4.5 pounds (2.04 kg)¹

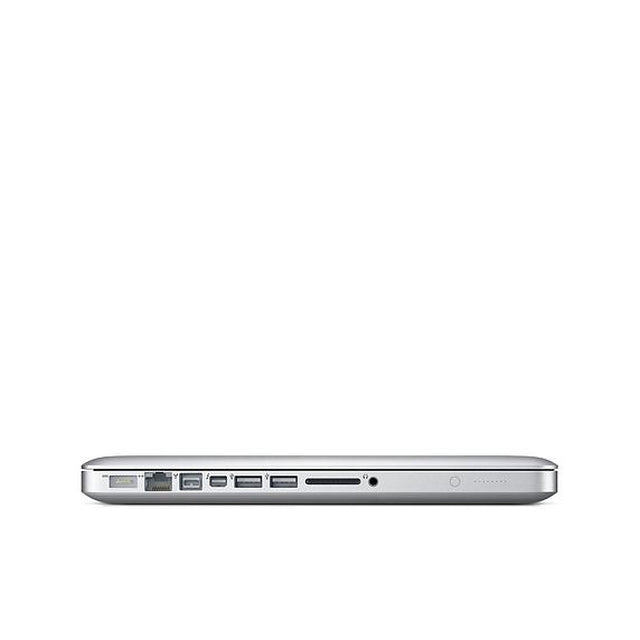

Connections and expansion

• MagSafe power port
• Gigabit Ethernet port
• FireWire 800 port (up to 800 Mbps)
• Two USB 2.0 ports (up to 480 Mbps)
• Thunderbolt port (up to 10 Gbps)
• Audio in/out
• SDXC card slot
• Kensington lock slot

Communications

• Wi-Fi wireless networking² (based on IEEE 802.11n specification); IEEE 802.11a/b/g compatible
• Bluetooth 2.1 + EDR (Enhanced Data Rate) wireless technology
• 10/100/1000BASE-T Gigabit Ethernet (RJ-45 connector)

Audio

• Stereo speakers with subwoofer
• Omnidirectional microphone
• Combined headphone/line in (supports digital output)
• Support for Apple iPhone headset with microphone

Environmental Status Report

MacBook Pro is designed with the following features to reduce its environmental impact:

• Highly recyclable aluminum and glass enclosure
• Mercury-free LED-backlit display
• Arsenic-free display glass
• BFR-free
• PVC-free³
• Energy Efficient Ethernet
• Reduced packaging volume
• Meets ENERGY STAR Version 5.2 requirements
• Rated EPEAT Gold⁴

Acoustic Performance

DECLARED NOISE EMISSIONS in accordance with ISO 9296

1. L_WAd is the statistical upper-limit A-weighted sound power level (rounded to the nearest 0.1 B).
2. L_pAm is the mean A-weighted sound pressure level measured at the operator position (rounded to the nearest dB).
3. 1 B (bel) = 10 dB (decibel).

Display

• 13.3-inch (diagonal) LED-backlit glossy widescreen display with support for millions of colors
• Supported resolutions: 1280 by 800 (native), 1152 by 720, 1024 by 640, and 800 by 500 pixels at 16:10 aspect ratio; 1024 by 768, 800 by 600, and 640 by 480 pixels at 4:3 aspect ratio; 1024 by 768, 800 by 600, and 640 by 480 pixels at 4:3 aspect ratio stretched; 720 by 480 pixels at 3:2 aspect ratio; 720 by 480 pixels at 3:2 aspect ratio stretched

Graphics and video support

• Intel HD Graphics 3000 with 384MB of DDR3 SDRAM shared with main memory⁵
• Dual display and video mirroring: Simultaneously supports full native resolution on the built-in display and up to 2560 by 1600 pixels on an external display, both at millions of colors
• FaceTime HD camera
• Thunderbolt port

Thunderbolt digital video output

• Native Mini DisplayPort output
• DVI output using Mini DisplayPort to DVI Adapter (optional)
• VGA output using Mini DisplayPort to VGA Adapter (optional)
• Dual-link DVI output using Mini DisplayPort to Dual-Link DVI Adapter supports 30-inch Apple Cinema HD Display (optional)
• HDMI audio and video output using a third-party Mini DisplayPort to HDMI Adapter

Input

• Full-size backlit keyboard with 78 (U.S.) or 79 (ISO) keys, including 12 function keys and 4 arrow keys (inverted “T” arrangement)
• Multi-Touch trackpad for precise cursor control; supports inertial scrolling, pinch, rotate, swipe, three-finger swipe, four-finger swipe, tap, double-tap, and drag capabilities

Processor and memory

• 2.3GHz dual-core Intel Core i5 processor with 3MB shared L3 cache or 2.7GHz dual-core Intel Core i7 processor with 4MB shared L3 cache
• 4GB (two 2GB SO-DIMMs) of 1333MHz DDR3 memory; two SO-DIMM slots support up to 8GB

Storage

• 320GB or 500GB 5400-rpm Serial ATA hard drive; optional 500GB 5400-rpm hard drive or 128GB, 256GB, or 512GB solid-state drive⁶
• 8x slot-loading SuperDrive (DVD±R DL/DVD±RW/CD-RW)
• Maximum write: 8x DVD-R, DVD+R; 4x DVD-R DL (double layer), DVD+R DL (double layer), DVD-RW, DVD+RW; 24x CD-R; 10x CD-RW
• Maximum read: 8x DVD-R, DVD+R, DVD-ROM; 6x DVD-ROM (double layer DVD-9), DVD-R DL (double layer), DVD+R DL (double layer), DVD-RW, DVD+RW; 24x CD

Battery and power⁷

• Up to 7 hrs wireless web
• Built-in 63.5-watt-hour lithium-polymer battery
• 60W MagSafe Power Adapter with cable management system
• MagSafe power port

Electrical and operating requirements

• Line voltage: 100V to 240V AC
• Frequency: 50Hz to 60Hz
• Operating temperature: 50° to 95° F
  (10° to 35° C)
• Storage temperature: -13° to 113° F
  (-24° to 45° C)
• Relative humidity: 0% to 90% noncondensing
• Maximum operating altitude: 10,000 feet
• Maximum storage altitude: 15,000 feet
• Maximum shipping altitude: 35,000 feet
